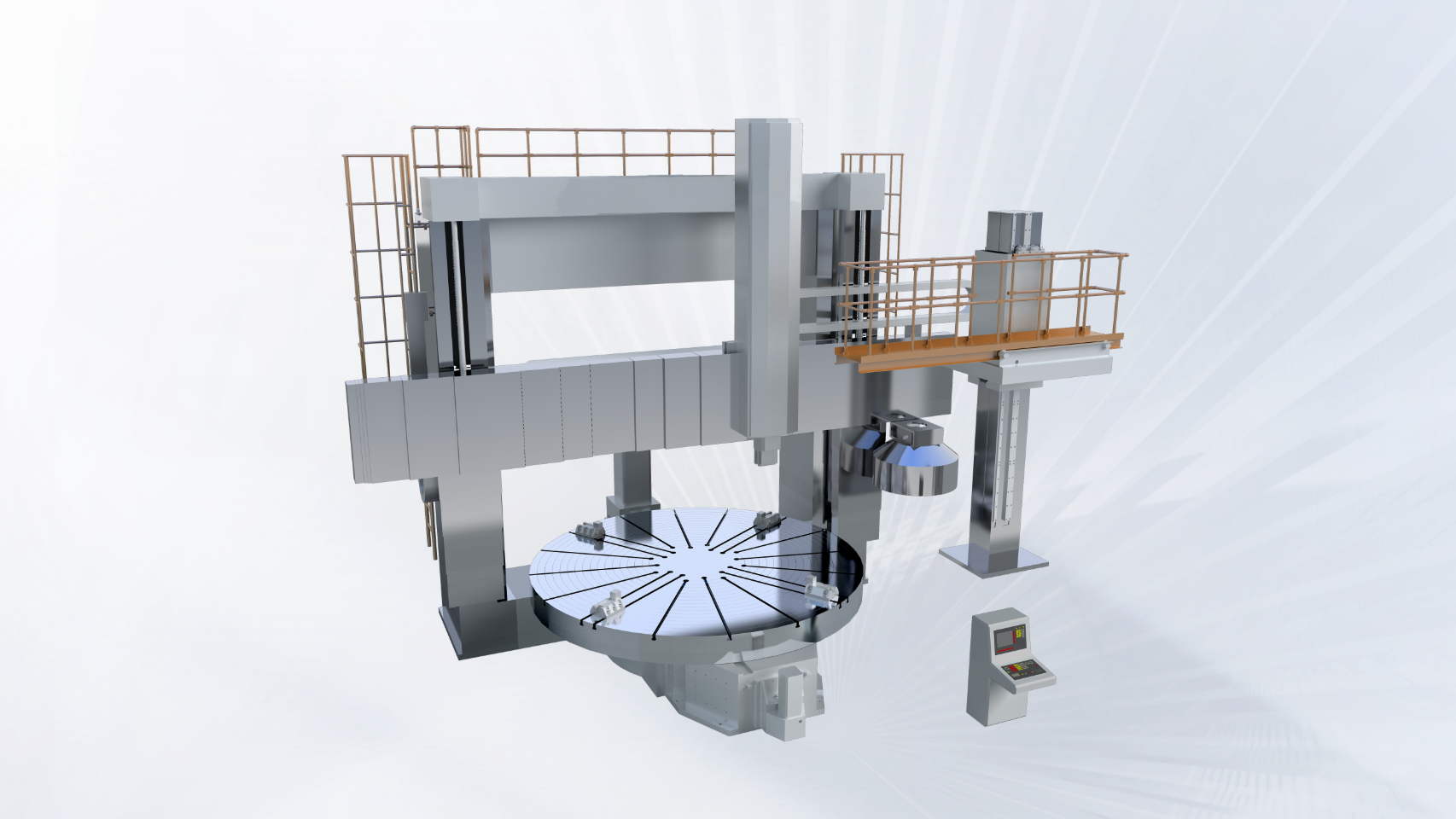

CKX SERIES TURNING & MILLING CENTER

Description

Features Of CKX SERIES TURNING & MILLING CENTER

This series of machine tool is a CNC vertical turning and milling machining center with full closed-loop three-axis (X, Z, C) linkage mainly for turning and milling. Multi-functional, controlled by CNC, it organically combines the functions of turning, boring, drilling, grinding and table indexing and feeding, etc. It can clamp the workpiece at one time and complete a variety of work processes. It can improve workpiece positional accuracy and processing efficiency.

Turning function: it can turn internal and external cylindrical surfaces, end surfaces, conical surfaces, turn threads, and turn at constant linear speed.

Milling function: it can mill end face cams, radial cams and so on.

Drilling and boring function: the worktable has any indexing and positioning function, and can drill and bore horizontal or vertical holes.

Grinding function: the tool holder with 400-diameter grinding wheel grinding head can grind inner hole or outer circle, etc.

Application scope: mainly used in power generation equipment, light industry machinery, large bearings, general machinery and other machinery manufacturing industries.

Specification

Parameters Of CKX SERIES TURNING & MILLING CENTER

Item	Unit	CKX5225	CKX5231	CKX5235	CKX5240	CKX5250	CKX5263	CKX5280
Max Cutting Diameter	mm	2500	3150	3500	4000	5000	6300	8000
Table Diameter	mm	2250	2830	3150	3600	4500	5700	7100
Max Workpiece Height	mm	1600/2000/2500				3150/5000		4000/5500
Max Workpiece Weight	t	20	32			50	50/80	80/125
Tool Post Horizontal Travel	mm	-15~1400	-15~1755	-15~2000	-15~2000	-50~2765	-50~3415	-50~4400
Tool Post Vertical Trave	mm	1000/1250/1400				1600	1600/1800;	2050/2750
Tool Post Speed	r/min	20~1000
Tool Post Type	/	BT50
Table Speed	r/min	2-63				0.5-40	0.32-32	0.2-20
Table Speed Steps	/	2 Step Stepless
C-axis Speed	r/min	0.001~2
C-axis Positioning Accuracy	/	±5”
C-axis Rpeatability Accuracy	/	±3”
Feed Speed	r/min	0.1~1000
Rapid Speed	mm/min	4000
Max Cutting Force of Vertical Tool Post	KN	35				50	63
Max Table Torque	KN·m	63	80			100	200	400
Cross Beam Travel	mm	1250/1650/2150				2800/3150		3500/5000
Cross Beam Speed	mm/min	350				310
Cross Beam Motor Power	KW	11				18.5	30	45
CNC System	/	Siemens 828D
Main Motor Power	KW	60				75	90/110	110/132
Tool Holder Size	mm	50×40
Tool Holder Type	/	Square Ram
Table Guideway Type	/	Hydrostatic Guideway
Ram Size	mm	250×250				250×250 280×280	280×280 320×320	320×320 360×360 400×400
Machine Weight	t	35-39
Machine Dimension (LxWxH)	mm	5700×5130 ×5400-6200	6400×5130 ×5400-6200	6900×5130 ×5400-6200	7300×5130 ×5400-6200	10000×13500 ×8500	15750×8000 ×8700	18000×9500 ×12550
