OXC Series

Description

Features Of OXC Series

EXCELLENT PRECISION STABILITY

The basic components are made of high-strength cast iron, and the secondary aging treatment makes the machine have

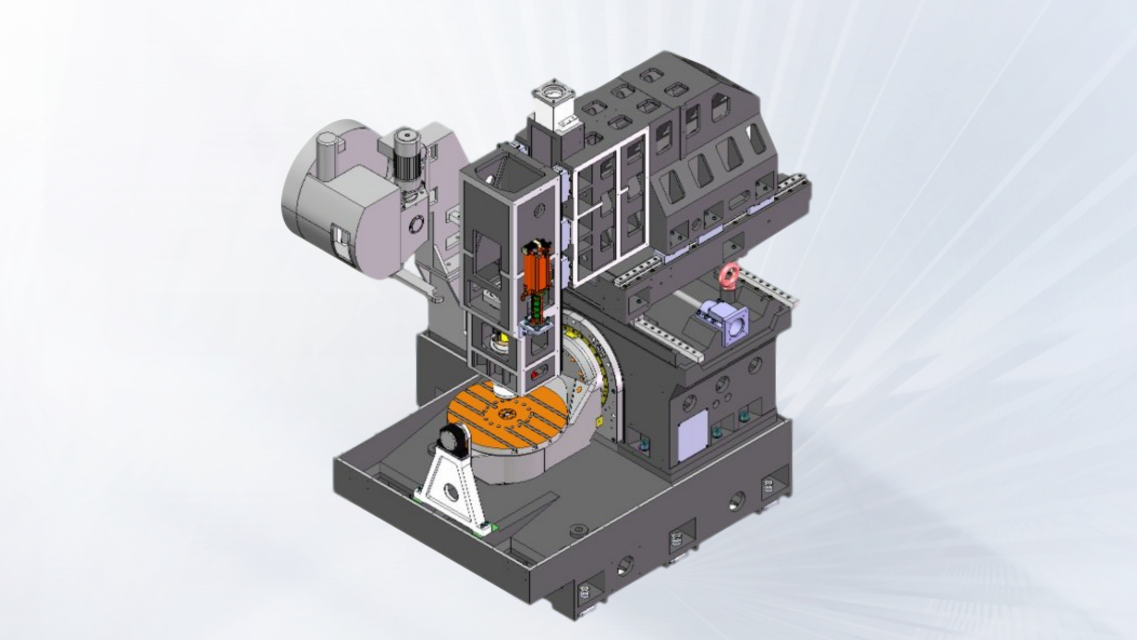

OPTIMIZED STRUCTURAL DESIGN

The finite element analysis of the basic components enables the machine to have excellent performance in both dynamic and static conditions.

REASONABLE STRUCTURAL LAYOUT

Compact structure and reasonable layout, effectively saving customer space.

QUALITY KEY COMPONENTS

The key components are internationally well-known brands, which greatly improve the reliability of machine tools.

COMPLETE PRODUCT SPECIFICATIONS

The product specifications are complete, to meet the machining needs of different industries, suitable for the machining

Specification

Parameters Of OXC Series

Item	Unit	OXC400
Table Size	mm	Φ400
X Travel	mm	800（Left: 460 Right: 340)
Y Travel	mm	360
Z Travel	mm	400
B/C Travel	mm	±110°/360°
Distance of Spindle Center to Gudieway	mm	183.5
Distance of Spindle Nose to Table Face	mm	150-550
T-slot (Number-Size × Space)	/	8-14×45
Spindle Taper(Type/Size/Speed)	/	BT40/Φ120-12000
Tools	/	Standard BT40-24T Disc Tools
X/Y/Z Roller Guideway	/	4012/4012/4012
X/Y/Z Guideway	/	35 Roller Guideway
X/Y/Z Rapid Speed	m/min	36/36/36
X/Y/Z Motor Connection	/	Direct Drive
Main Motor Power	kw	7.5/11
XYZ Motor Torque	N·m	22/22/22
Height of Machine Bed Blocks	mm	40
Table Load (Vertical/Horizontal)	kg	120/220
Machine Weight	t	7.5

Item	Unit	OXC500
Table Size	mm	Φ550
X Travel	mm	820（Left: 550 Right: 320)
Y Travel	mm	450
Z Travel	mm	400
B/C Travel	mm	±110°/360°
Distance of Spindle Center to Gudieway	mm	156
Distance of Spindle Nose to Table Face	mm	200-600
Spindle Taper(Type/Size)	/	HSK-A63
Spindle Speed	r/min	20000
Spindle Torque NM(S1/S6)	/	35/42
Tools	/	Standard 24T Disc Tools
X/Y/Z Roller Guideway	/	4012
X/Y/Z Guideway	/	45/35/35 Roller Guideway
X/Y/Z Rapid Speed	m/min	24/24/24
X/Y/Z Motor Connection	/	Direct Drive
Main Motor Power	kw	11
XYZ Motor Torque	N·m	23/23/27
Height of Machine Bed Blocks	mm	50
Table Load (Vertical/Horizontal)	kg	300
Machine Weight	t	8.5

Item	Unit	OXC650
Table Size	mm	Φ650
X Travel	mm	820（Left: 550 Right: 320)
Y Travel	mm	520
Z Travel	mm	500
B/C Travel	mm	±110°/360°
Distance of Spindle Center to Gudieway	mm	187
Distance of Spindle Nose to Table Face	mm	150-650
Spindle Taper(Type/Size)	/	BT40/Φ150
Spindle Speed	r/min	15000
Spindle Torque NM(S1/S6)	/	35/42
Tools	/	Standard BT40-24T Disc Tools
X/Y/Z Roller Guideway	/	4012
X/Y/Z Guideway	/	45 Roller Guideway
Rapid Speed	m/min	24/24/24
X/Y/Z Motor Connection	/	Direct Drive
Main Motor Power	kw	11
XYZ Motor Torque	N·m	22/22/22
Height of Machine Bed Blocks	mm	50
Table Load (Vertical/Horizontal)	kg	300
Machine Weight	t	11
