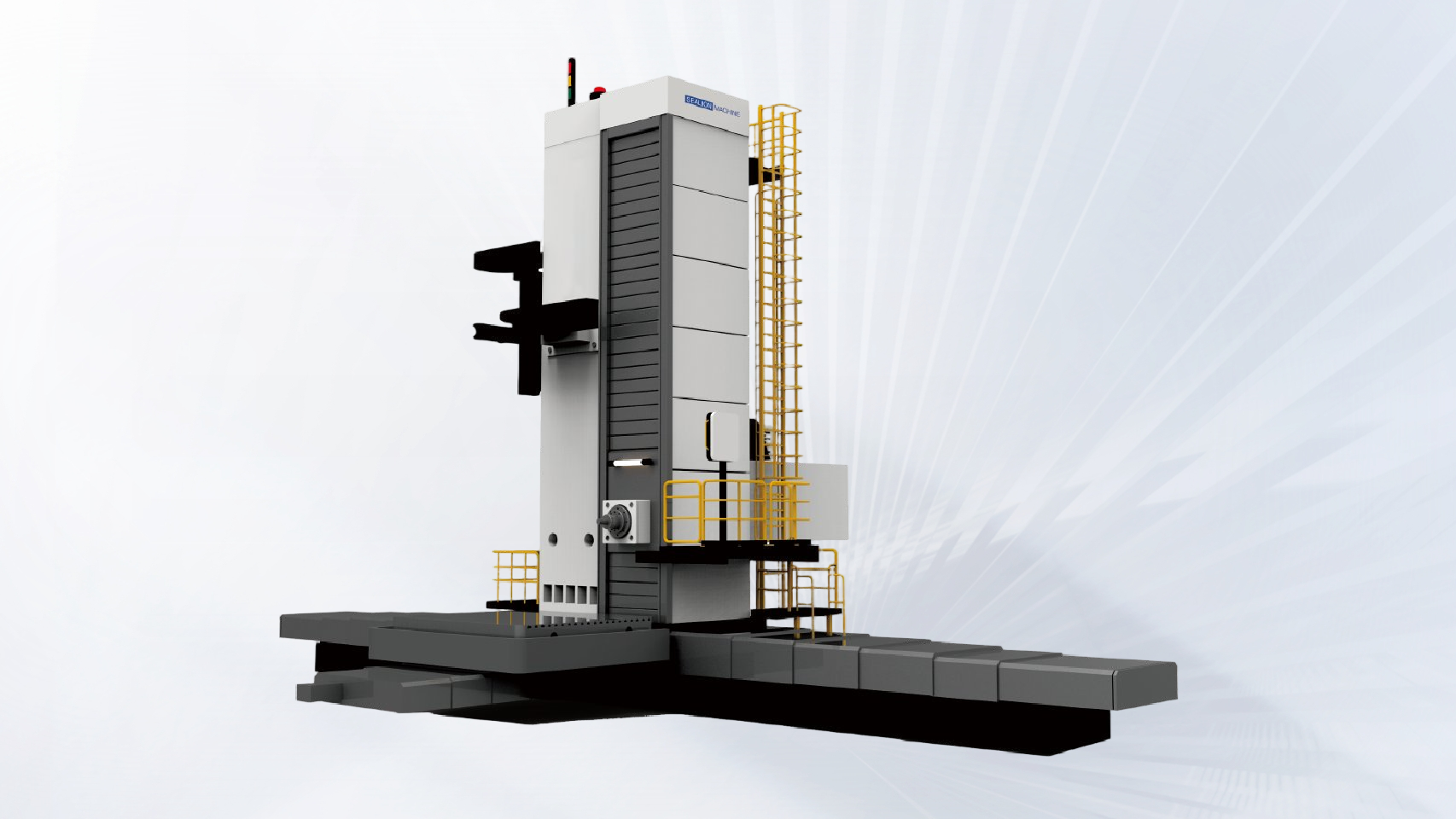

TK62 Series
CONSULT NOW
  • HT300 Hign Tension Casting
  • Y-axis Nut rotation
  • Floor type boring and milling
  • Hydrostatic guideway
Send Inquiry
Application Area
Description
Features Of TK62 Series

Hydrostatic guideway



Highly rigid bed with multiple supports



Protected Main Gearbox



Balance System by Imported Hawser



Highly rigid bed with multiple supports



Double-layer reinforcement design of the column



All guideway grinded



Column guide with unloading device



Self-contained multiple compensation methods

Specification
Parameters Of TK62 Series
SPINDLE   TK6213 TK6216
Spindle Diameter mm 130 160
Milling End Diameter mm 221.44 260
Spindle Taper   ISO50 ISO50
Spindle Speed r/min 2~2000 2~2000
Spindle Max Torque N.m 2200 3500
Max Axial Force N 30000 40000
Main Spindle Motor Kw 30 45
Facing Head Diameter mm 630 750
Facing Head Speed r/min 3~122 3~100



MACHINING RANGE   TK6213 TK6216
Column Travel (X) m 4+n 4+n
Gearbox Vertical Travel (Y) m 2~4 3~6
Spindle Travel (Z) mm 1000 1000
Facing Head Trave (U) mm 140 200



FEEDING SPEED   TK6213 TK6216
X mm/min 0.5~10000 0.5~8000
Y mm/min 0.5~10000 0.5~8000
Z mm/min 0.5~6000 0.5~6000
Positioning Accuracy X/Y ±0.02 ±0.02
  Z ±0.02 ±0.02
Repeatability X/Y 0.015 0.015
  Z 0.018 0.018



Instant Inquiry
Please select the relevant specification parameters, and we will immediately send a quotation for the milling machining center you need.
