VMC Serivies

Description

Features Of VMC Series

Vertical machining centers are mainly used for processing plates, discs, shells, molds and other high-precision, multi-pro cess, complex shape parts.

It can continuously complete milling, drilling, expanding, reaming, boring, tapping, and 2D-3D surface and beveled surface precision machining in one clamping, and the machining is programmed to shorten the production cycle, so that the user can get good economic benefits.

VMC series vertical machining center is one of the products developed by our company with independent intellectual property rights.

The machine tool adopts electromechanical integration structure and applies three-dimensional design software (UG) and finite element analysis software (Ansys) to carry out optimized design, which makes the machine tool structure design more reasonable, and the machine tool rigidity, precision retention, and reliability tend to be perfect.

Through the introduction of advanced design concepts, scientific design means, to solve the traditional design can not avoid the shortcomings.

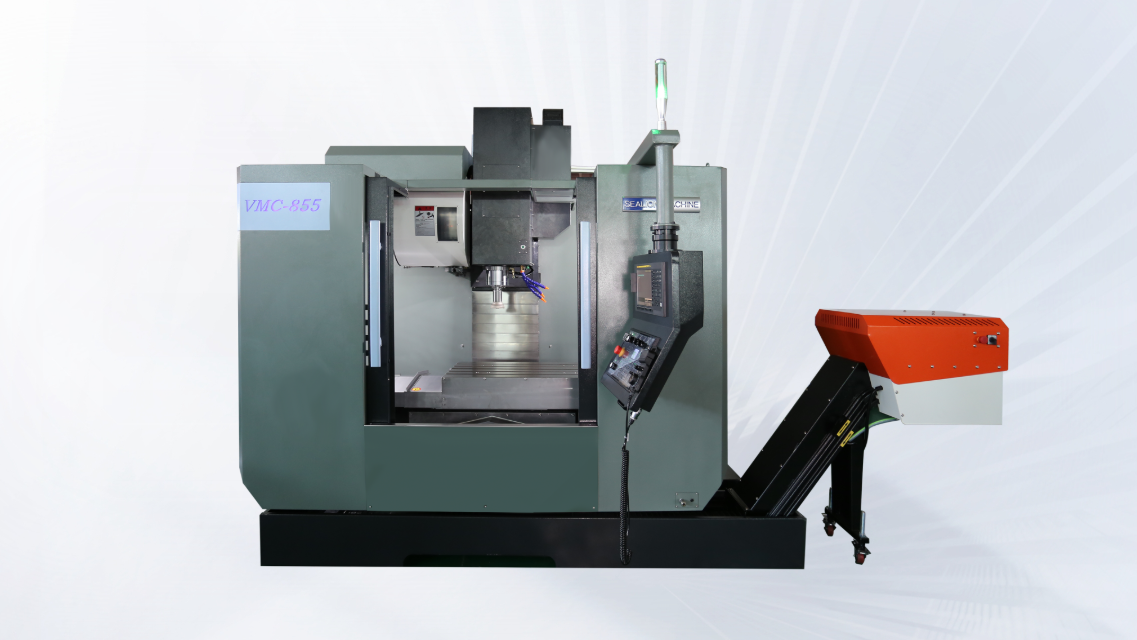

VMC series vertical machining center adopts vertical frame layout, the column is fixed on the bed, the spindle box moves up and down along the column (Z-direction), the slide moves longitudinally along the bed (Y-direction), and the table moves transversely along the slide (X-direction).

The bed, table, slide, column, spindle box and other large parts are made of high-strength cast iron, molding resin sand process, two times aging treatment to eliminate stress.

These large parts are optimized by UG and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.

Specification

Parameters Of VMC Series

Item		VMC640	VMC850	VMC855	VMC1160	VMC1370
Table	Table Size(mm)	700×420	500×1000	550×1000	600×1200	700×1400
	Max Load on Table(kg)	300	400	1200	800	800
	T-slot Width(mm)	18
	T-slot Space(mm)	120	100			110
	T-slot Numbers	3	5
Travel	X Travel(mm)	600	800	800	1100	1300
	Y Travel(mm)	400	500	550	600	700
	Z Travel(mm)	440	500	550	600	700
	Table to Spindle Nose Distance(mm)	140-580	110-610	120-670	120-720	110-810
	Spindle Center to Guideway Distance(mm)	470	524	590	650	810
Spindle	Spindle Type	Direct/Belt
	Spindle Speed(rpm)	12000/10000	8000/10000/12000
	Main Motore Power(kW)	48	7.5/11		11/15
Speed of XYZ	X/Y/Z Rapid Speed(r/min)	48/48/48	48/48/36	36/36/36		24/24/24
	X/Y/Z Motor Power(kW)	≥1.4/1.4/3(brake)		≥3/3/3(brake)
	X/Y/Z Torque(N·m)	10.4/10.4/22	20/20/20(brake)			20/20/27(brake)
	X/Y/Z Feeding Speed(mm/min)	1-10000
Accuracy	X/Y/Z Accuracy(mm)	±0.005/300	±0.005			±0.008
Accuracy	X/Y/Z Repeatability(mm)	±0.003
Size	Machine Self Weight(kg)	3200	5000	5500	6500	8000
