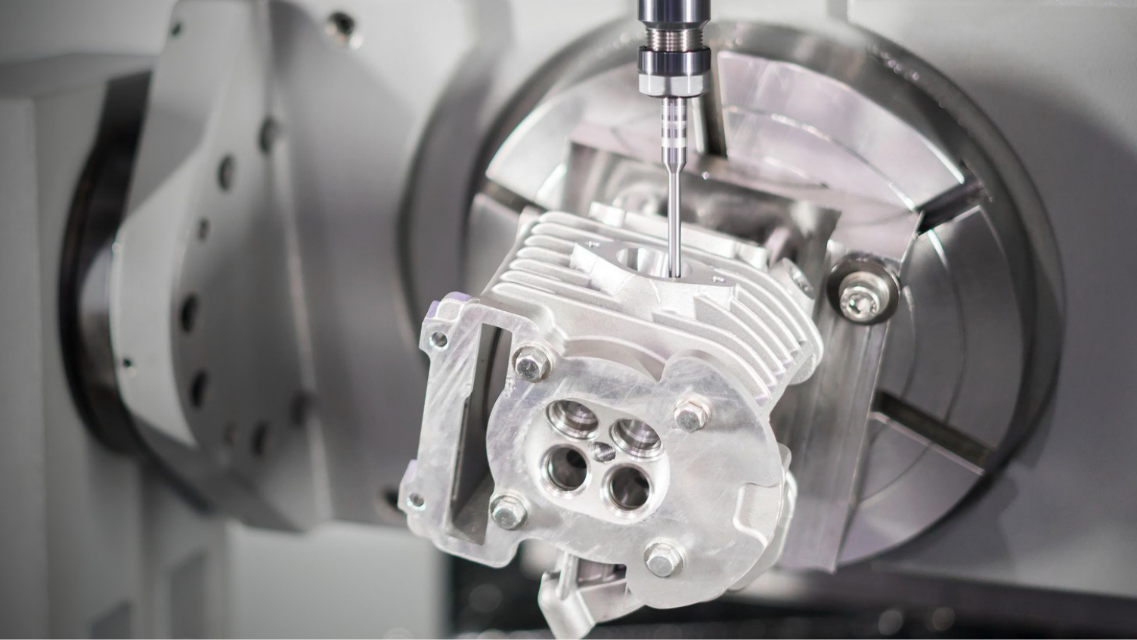

C Series

Description

Features Of C Series

EXCELLENT PRECISION STABILITY

The basic components are made of high-strength cast iron, and the secondary aging treatment makes the machine have excellent precision stability.

OPTIMIZED STRUCTURAL DESIGN

The finite element analysis of the basic components enables the machine to have excellent performance in both dynamic and static conditions.

REASONABLE STRUCTURAL LAYOUT

Compact structure and reasonable layout, effectively saving customer space.

QUALITY KEY COMPONENTS

The key components are internationally well-known brands, which greatly improve the reliability of machine tools.

COMPLETE PRODUCT SPECIFICATIONS

The product specifications are complete, to meet the machining needs of different industries, suitable for the machining

Specification

Parameters Of C Series

Item		Unit	C400
Travel	X Travel	mm	500
	Y Travel	mm	500
	Z Travel	mm	450
	A Rotation Angle	deg	-120~+120
	C Rotation Angle	deg	n×360
	X-axis Travel from Table Center	mm	-250~+250
	Y-axis Travel from Table Center	mm	-250~+250
	Max Distance of Spindle Nose to Table Face	mm	550
	Min Distance of Spindle Nose to Table Face	mm	100
Table(OP)	Tabel Type	/	Direct Drive
	Tabel Size	mm	Φ475
	Max Table Load	kg	500
	Max Turning Diameter	mm	Φ500
	Max Workpiece Height	mm	370
	Collision circle at 0° position	mm	Φ610
	T-Slot Type	mm	8 Nos of 12H8
	Table Lock Mode	/	Pneumatics
	Brake Torque A/C	N.m	2500/1500
	A/C Max Torque	N.m	2700/1350
	A/C Rated Torque	N.m	900/450
Spindle	Type	/	Mechanic/BT40
	Rated Power	kw	7.5
	Spindle Speed	rpm	12000
Spindle (OP)	Spindle Type/Taper Type	/	Electric Spindle/HSK-A63
	Diameter of Spindle Sleeve	mm	Φ150
	Spindle Rated Power	kw	20
	Spindle Rated Torque	N.m	S1:47.7/S6(40%)57.3
	Spindle Speed	rpm	20000
Tool (OP)	Tool Type	/	Horizontal Umbrella Type/Chain Type
	Tool Capacity	T	20/30/40
	Max Tool Diameter/Length	mm	Φ60/250
Feeding	X/Y/Z Rapid Speed	m/min	32/32/32
	A/C Max Speed	rpm	200/200
	X/Y/Z Screw	mm	R4012/R4012/R4012
	X/Y/Z Guideway	mm	35 /35/35 Roller Guideway
Other	Machine Weight	T	7

Item		Unit	C500/650
Travel	X Travel	mm	600
	Y Travel	mm	710+230 (Tool Change Travel)
	Z Travel	mm	500
	A Rotation Angle	deg	120
	C Rotation Angle	deg	360
	Distance between C Face to A Rotation Center	mm	80
	C Max Swing Diameter	mm	Φ700
	A Max Swing Diameter	mm	Φ860
	Distance between Spindle Face to Table (Table 0°) Z Direction	mm	150~650
	Distance between Spindle Face to Table (Table 90°) Z Direction	mm	70~570
	Distance between Spindle Center to Table (Table 0°) Y Direction	mm	-310 ~ 400
	Distance between Spindle Center to Table (Table 90°) Y Direction	mm	-230 ~ 480
Speed of XYZ	X/Y/Z Rapid Speed	m/min	36-48
Turning Table (C axis)	Table Diameter	mm	500(OP 650)
	Table Load	kg	350/500
	Rated/Max Rotation Speed	rmp	100/150
	Rated/Max Torque	N.m	183/318
	Position/Repeatability Accuracy	arc.sec	8/4
A Axis	Rated/Max Turning Speed	rmp	30/60
	Rated/Max Torque	N.m	940/2000
	Position/Repeatability Accuracy	arc.sec	10/6
Maximum Size of Workpiece (diameter × height)		mm	Φ700×500
Spindle	Spindle Type	mm	Φ170 Built-in Spindle	Φ190 Built-in Spindle
	Spindle Taper	mm	HSK A63	HSK A63
	Max Spindle Speed	r/min	20000	16000
	Main Motor Power	kw	20	30
	Main Motor Torque (continuous)	N.m	47.3	100
X/Y/Z	X Linear Guideway (Width/Slider Number)	mm	45/2 (Roller Guideway)
	Y Linear Guideway (Width/Slider Number)	mm	45/3 (Roller Guideway)
	Z Linear Guideway (Width/Slider Number)	mm	45/2 (Roller Guideway)(OP:3 Slider)
	X Ballsrew	mm	40×12/16
	Y Ballsrew	mm	40×12/16
	Z Ballsrew	mm	40×12/16
Tool	Capacity	Nos	20/30/40
	Tool Changing Time(T-T)	s	4
	Max Tool Diameter (Full/Adjacent Empty)	mm	80/120
	Max Tool Length	mm	300
	Max Tool Weight	kg	8
XYZ Accuracy	Position Accuracy	mm	0.005/300
	Repeatability Position Accuracy	mm	0.003/300
Other	Width × Length	mm	2200×4500
	Machine Weight	t	10

Item		Unit	C800
Travel	X Travel	mm	800
	Y Travel	mm	950
	Z Travel	mm	600
	A Rotation Angle	deg	-120~+120
	C Rotation Angle	deg	n×360
	X-axis Travel from Table Center	mm	-400~+400
	Y-axis Travel from Table Center	mm	-550~+400
	Max Distance of Spindle Nose to Table Face	mm	720
	Min Distance of Spindle Nose to Table Face	mm	120
Table(OP)	Tabel Type	/	Direct Drive
	Tabel Size	mm	Φ850
	Max Table Load	kg	1200
	Max Swing Diameter	mm	Φ1100
	Max Workpiece Height	mm	550
	Collision circle at 0° position	mm	Φ990
	T-Slot Type	mm	8 Nos of 12H8
	Table Lock Mode	/	Pneumatics
	Brake Torque A/C	N.m	8400/4200
	A/C Max Torque	N.m	7800/3900
	A/C Rated Torque	N.m	2200/4400
Spindle	Type	/	Mechanic/BT40
	Rated Power	kw	15
	Spindle Speed	rpm	12000
Spindle (OP)	Spindle Type/Taper Type	/	Electric Spindle /HSK-A63
	Diameter of Spindle Sleeve	mm	Φ150/Φ170
	Spindle Rated Power	kw	20
	Spindle Rated Torque	N.m	S1:47.7/S6(40%)57.3
	Spindle Speed	rpm	20000
Tool (OP)	Tool Type	/	Horizontal Umbrella Type/Chain Type
	Tool Capacity	T	20/30/40
	Max Tool Diameter/Length	mm	Φ75/300
Feeding	X/Y/Z Rapid Speed	m/min	30/18/30
	A/C Max Speed	rpm	60/70
	X/Y/Z Ballscrew	mm	R5512/R4012/R4012
	X/Y/Z Guideway	mm	45/45 /45 Roller Guideway
Other	Machine Weight	T	14
