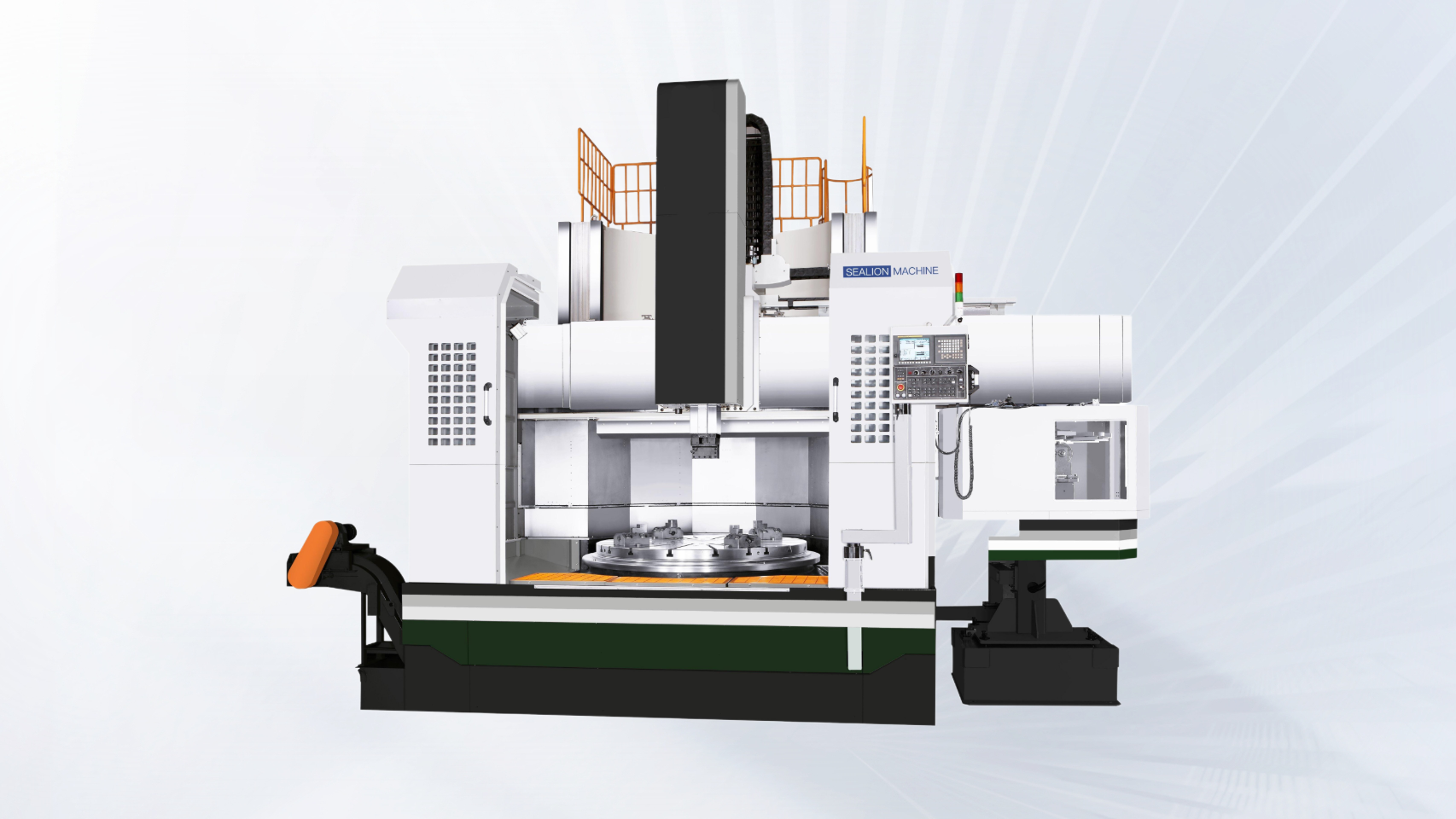

CHS51T HIGH SPEED DOUBLE LIFTING WITH ATC

Description

Features Of CHS51T HIGH SPEED DOUBLE LIFTING WITH ATC

Double screw and symmetrical guide rail structure increase the stability of the crossbeam.

The extended crossbeam provides conditions for the installation of the tool magazine, so this series can add a tool magazine.

The column is located on the base of the table.

Adopting a dual speed gearbox for variable speed transmission.

Table is dynamic and static balanced.

High speed rotary table, the grinding attachment can be your optional choice.

Oil cooling and A/C system is standard on this series machines.

Specification

Parameters Of CHS51T HIGH SPEED DOUBLE LIFTING WITH ATC

Item	Unit	CHS5112T	CHS5116T	CHS5120T	CHS5123T
Max Processing Diameter	mm	1250	1600	2000	2300
Max Turning Diameter	mm	1270	1620	2020	2320
Table Diameter	mm	1000	1400	1800	2000
Max Processing Height	mm	1000	1000	1250	1350
Max Processing Height Limit (OP)	mm	1250	1600	1800	1800
Table Speed	r/min	6.3~320	5~260	3.2~220	3.2~200
Table speed steps	/	2-Speed Stepless with ZF gearbox
Table Load (Rolling guideway)	t	5	8	10	10
Feeding speed of tool post	mm/min	0.1~1000
Rapid Speed of tool post	mm/min	2000
Horizontal Travel of Tool Post(X)	mm	-50~750	-50~1000	-50~1150	-50~1350
Cross Beam Travel	mm	Max Processing Height -350
Main Motor Power	kW	22	30	37	37
Main Motor Torque	KNm	8.5	14.5	25	26
Cross Beam Lifting Speed	mm/min	440
Max Cutting Force of Vertical Tool Holder	Kn	20	25
Machine Dimension (LxW)	mm	3400×2400	3600×2650	4700×2985	5000×3600
Machine Dimension with Cover (LxW)	mm	4350×3714	4700×3805	5800×4325	6200×4220
Min Height	mm	2900	3100	3500	3500
Machine Weight	t	19	22	25	27
Accuracy Level	/	IT7
Positioning Accuracy	mm	0.025/1000
Repeatability Accurac	mm	0.01/1000
Reverse Deviation	mm	0.012/1000
