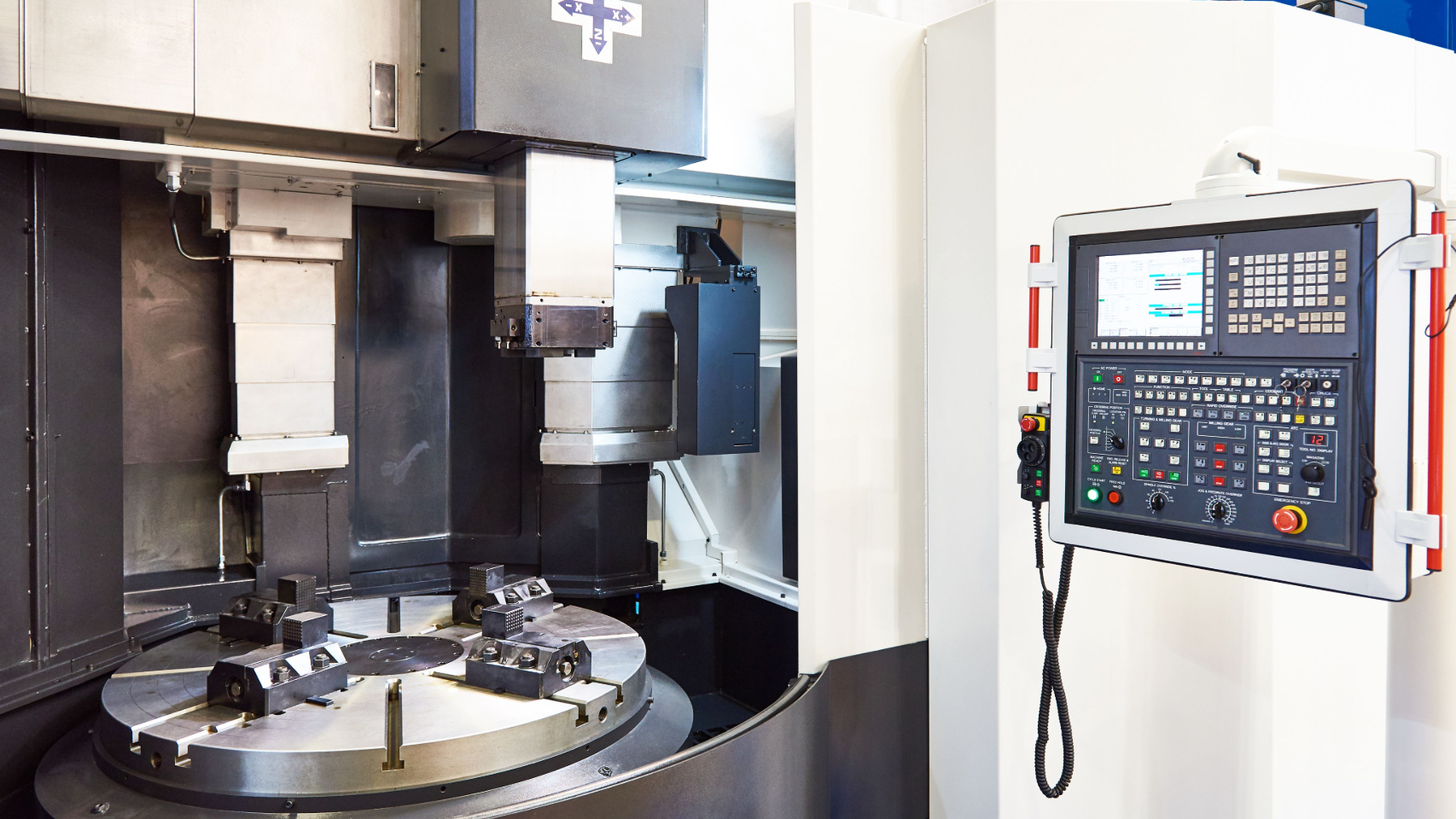

CKS51T HIGH SPEED DOUBLE LIFTING SERIES

Description

Features Of CKS51T HIGH SPEED DOUBLE LIFTING SERIES

This series are double lift series and upgraded version of the CKS51T series,absorbing all the advantages of the CKS51T series.

The crossbeam adopts dual screw driven lifting motion and the bed guide rail is arranged in a thermally symmetrical structure.The cross beam maintains high parallelism accuracy the to worktable.

Effectively improved the consistency of various accuracies of the worktable with the vertical tool holder at diferent positions on the cross beam.

Double speed gear box system.

High speed rotary table, the grinding attachment can be your optional choice.

Oil cooling and A/C system is standard on this series machines.

Specification

Parameters Of CKS51T HIGH SPEED DOUBLE LIFTING SERIES

Item	Unit	CKS5112T	CKS5116T	CKS5120T	CKS5123T
Max Processing Diameter	mm	1250	1600	2000	2300
Max Turning Diameter	mm	1270	1620	2020	2320
Table Diameter	mm	1000	1400	1800	2000
Max Processing Height	mm	1000	1000	1250	1350
Max Processing Height Limit (OP)	mm	1250	1600	1800	1800
Table Speed	r/min	6.3~320	5~260	3.2~220	3.2~200
Table Speed Steps	/	2-Speed Stepless
Table Load	t	5	8	10	10
Feeding Speed of Tool Post	mm/min	0.1~1000
Rapid Speed of Tool Post	mm/min	2000
Horizontal Travel of Tool Post(X)	mm	-50~750	-50~1000	-50~1150	-50~1350
Cross Beam Travel	mm	Max Processing Height -350
Main Motor Power	kW	22	30	30	37
Main Motor Torque	KNm	8.5	14.5	25	26
Beam Lifting Speed	mm/min	440
Max Cutting Force of Vertical Tool Holder	Kn	20	25
Machine Dimension (LxW)	mm	2930×2400	3600×2650	3950×2985	4700×3600
Machine Dimension with Cover (LxW)	mm	4000×3714	4700×3805	5200×4325	5700×4220
Min Height	mm	2900	3100	3500	3500
Machine Weight	t	18	21	24	26
Accuracy Level	/	IT7
Positioning Accuracy	mm	0.025/1000
Repeatability Accuracy	mm	0.01/1000
Reverse Deviation	mm	0.012/1000
