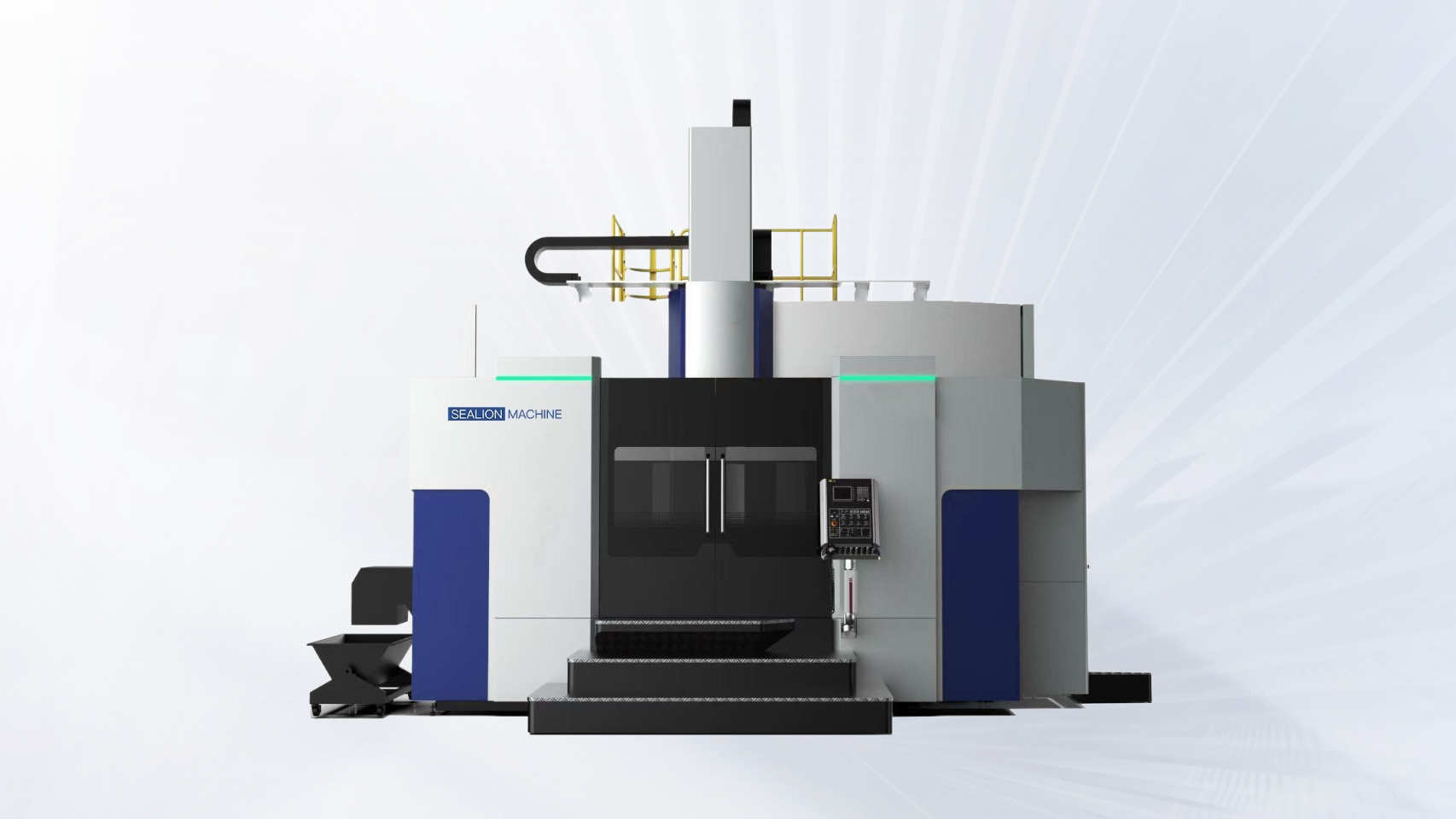

HT SERIES VERTICAL MACHINE CENTER

Description

Features Of HT SERIES VERTICAL MACHINE CENTER

In line with international advanced structures, high-speed-vertical lathes.

Can improve the surface smoothness of processed parts

Indexing rotary table.

BT50 type ATC system.

C axis with milling and drilling function.

The turning tool holder also has a BT50 interface.

Compact structure.

High processing accuracy

Specification

Parameters Of HT SERIES VERTICAL MACHINE CENTER

Item	Unit	HT1000/A	HT1000/ATC	HT1000/ATC+C
Table Diameter	mm	1000	1000	1000
Max Swing Diameter	mm	1350	1350	1350
Max Cutting Diameter	mm	1100	1100	1100
Max Cutting Height	mm	900	900	900
Max Table Load	kg	4000	4000	4000
X Travel	mm	-375~+720	-375~+700	-375~+700
Z Travel	mm	800	800	800
Cross Beam Travel	mm	500	500	500
Spindle Speed	min^-1	Low:1-160 High:160-600	Low:1-160 High:160-600	Low:1-160 High:160-600
Milling Spindle Speed	min^-1	——	——	Low:2-1200 High:1200-2400
Spindle Torque	Nm	8496（866）	8496（866）	8496（866）
X Rapid Speed	m/min	12
Z Rapid Speed	m/min	10
Feeding Speed	mm/min	1-2000
Manual Feeding Speed	m/min	0-6
Tool Capacity	/	--	12
Tool Type	/	--	7/24 Taper BT-50
Max Tool Length	mm	340	380
Max Tool Weight	kg	50	50
Max Tool Magazine Load	kg	--	360
Tool Change Time	sec	5	40
Tool Table Form	/	5 Degree Turret	--
Tool Holder Size	mm	32×32(Φ63)	--
Controller	kW	FANUC OI-TF
Spindle Motor	kW	37/45(α40)	37/45(α40)	37/45(α40)
Milling Spindle Motor	kW	--	--	7.5/11(α8)
X Servo Motor	kW	6(α40i)
Z Servo Motor	kW	6(α40i+β)
CF Servo Motor	kW	--	--	6(α40i)
Cutting Fluid Motor	KVA	--	--	--
Power Demand	L	65	65	80
Hydraulic Tank	L	60	60	130
Coolant Tank	L	700
Lubricating Oil Tank	L	4.6
Machine Dimension	mm	4000×4800
Machine Height	mm	4850
Machine Weight	mm	20	20	21
X/Z Accuracy	mm	Positioning Accuracy:±0.007/500;Repet Accuracy:±0.005
C Accuracy	/	Positioning Accuracy:±7.5”/360°;Repet Accuracy:±5”

Item	Unit	HT1200/A	HT1200/ATC	HT1200/ATC+C
Table Diameter	mm	1250	1250	1250
Max Swing Diameter	mm	1600	1600	1600
Max Cutting Diameter	mm	1350	1350	1350
Max Cutting Height	mm	1200	1200	1200
Max Table Load	kg	5000	5000	5000
X Travel	mm	-60；+1230	-50；+875	-50；+875
Z Travel	mm	900	900	900
Cross Beam Travel	mm	750	750	750
Spindle Speed	min^-1	Low:1-140 High:140-350	Low:1-140 High:140-350	Low:1-140 High:140-350
Milling Spindle Speed	min^-1	——	——	Low:2-1200 High:1200-2400
Spindle Torque	Nm	8607（878）	8607（878）	8607（878）
X Rapid Speed	m/min	12
Z Rapid Speed	m/min	10
Feeding Speed	mm/min	1-2000
Manual Feeding Speed	m/min	0-6
Tool Capacity	/	--	12
Tool Type	/	--	7/24 Taper BT-50
Max Tool Length	mm	340	380
Max Tool Weight	kg	50	50
Max Tool Magazine Load	kg	--	360
Tool Change Time	sec	5	40
Tool Table Form	/	5 Degree Turret	--
Tool Holder Size	mm	32×32(Φ63)	--
Controller	kW	FANUC OI-TF
Spindle Motor	kW	37/45(α40)	37/45(α40)	37/45(α40)
Milling Spindle Motor	kW	--	--	7.5/11(α8)
X Servo Motor	kW	6(α40i)
Z Servo Motor	kW	6(α40i+β)
CF Servo Motor	kW	--	--	6(α40i)
Cutting Fluid Motor	KVA	1.5
Power Demand	L	65		80
Hydraulic Tank	L	130
Coolant Tank	L	570
Lubricating Oil Tank	L	4.6
Machine Dimension	mm	4600×5200
Machine Height	mm	5400
Machine Weight	mm	22	22	23
X/Z Accuracy	mm	Positioning Accuracy:±0.007/500;Repet Accuracy:±0.005
C Accuracy	/	Positioning Accuracy:±7.5”/360°;Repet Accuracy:±5”

Item	Unit	HT1600/A	HT1600/ATC	HT1600/ATC+C
Table Diameter	mm	1600	1600	1600
Max Swing Diameter	mm	2000	2000	2000
Max Cutting Diameter	mm	1800	1800	1800
Max Cutting Height	mm	1200	1200	1200
Max Table Load	kg	8000	8000	8000
X Travel	mm	-50；+1500	-100；+1125	-100；+1125
Z Travel	mm	900	900	900
Cross Beam Travel	mm	750	750	750
Spindle Speed	min^-1	Low:1-62 High:62-250	Low:1-62 High:62-250	Low:1-62 High:62-250
Milling Spindle Speed	min^-1	——	——	Low:2-1200 High:1200-2400
Spindle Torque	Nm	19677（2007）	19677（2007）	19677（2007）
X Rapid Speed	m/min	12
Z Rapid Speed	m/min	10
Feeding Speed	mm/min	1-2000
Manual Feeding Speed	m/min	0-6
Tool Capacity	/	--	12
Tool Type	/	--	7/24 Taper BT-50
Max Tool Length	mm	340	380
Max Tool Weight	kg	50	50
Max Tool Magazine Load	kg	--	360
Tool Change Time	sec	5	40
Tool Table Form	/	5 Degree Turret	--
Tool Holder Size	mm	32×32(Φ63)	--
Controller	kW	FANUC OI-TF
Spindle Motor	kW	37/45(α40)	37/45(α40)	37/45(α40)
Milling Spindle Motor	kW	--	--	7.5/11(α8)
X Servo Motor	kW	6(α40i)
Z Servo Motor	kW	6(α40i)
CF Servo Motor	kW	--	--	6(α40i)
Cutting Fluid Motor	KVA	1.5
Power Demand	L	65		80
Hydraulic Tank	L	130
Coolant Tank	L	550
Lubricating Oil Tank	L	4.6
Machine Dimension	mm	5550×5530
Machine Height	mm	5400
Machine Weight	mm	24	24	25
X/Z Accuracy	mm	Positioning Accuracy:±0.007/500;Repet Accuracy:±0.005
C Accuracy	/	Positioning Accuracy:±7.5”/360°;Repet Accuracy:±5”
