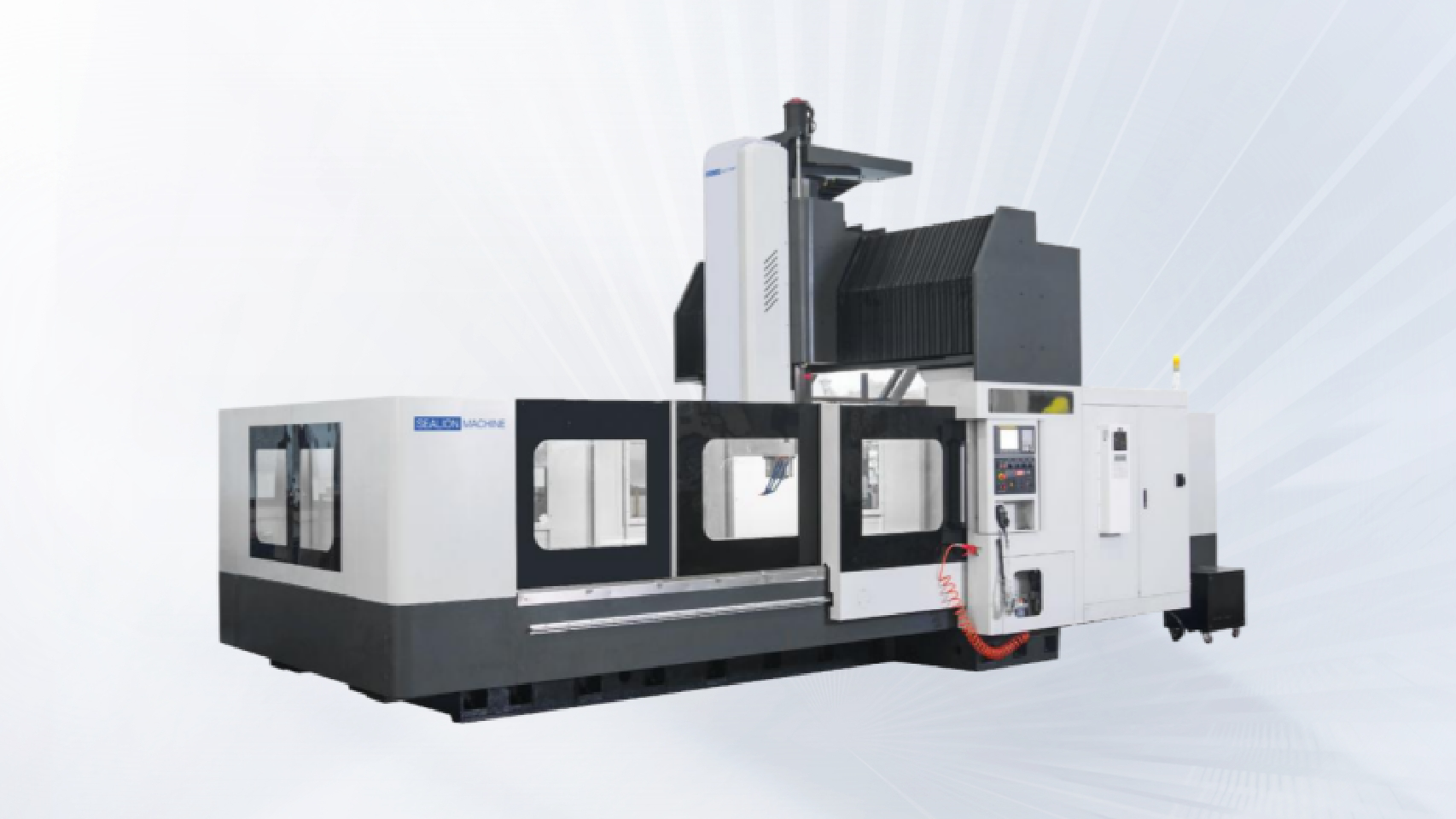

T-Slide Gantry Machining Center
CONSULT NOW
  • High Rigidity High Precision High Torque
  • HT300 Casting
  • Multi Axis Simultaneous Control u class accuracy
  • Wide variety of processing methods and a wide range of application scenarios.
  • Rich Extended Configuration
Send Inquiry
Application Area
Description
Features Of T-Slide Gantry Machining Center

High Rigidity High Precision High Torque

This series adopts fixed gantry frame and table moving structure, featuring high rigidity, high precision, large torque and good dynamic characteristics.



HT300 Casting

The key parts such as bed, column, saddle, spindle box and table are all made of resin sand molding, high-strength and high-quality cast iron, with good stability and small harmonic wave.



Multi Axis Simultaneous Control u class accuracy

Heavy load on table. The table is highly resistant to vibration during heavy cutting. Excellent flatness of the workpiece in finishing operations.



Wide variety of processing methods anda wide range ofapplication scenarios.

Ideal for aerospace, rail, wind power, mold and die, and a variety of other industrial parts. Easily perform complete five-sided milling, drilling, boring, reaming, reaming, countersinking, tapping and more by adding by adding one or more optional heads.



Rich Extended Configuration

The machine has been developed in depth and is available with a wide range of accessories.

Specification
Parameters Of T-Slide Gantry Machining Center
Item Unit GMCT1614 GMCT2014 GMCT2514 GMCT3014
Table Table Width mm 1200 1200 1200 1200
Table Length mm 1700 2100 2600 3100
Table Load t 2.5 3.5 4.5 5.5
T Slot ( No - WxD) / 7-22×170
Travel Gantry Width mm 1500
Gantry Height mm 1030
Table Trave (X Axis) mm 1600 2000 2500 3000
Ram Travel (Y Axis) mm 1500
Spindle Travel (Z Axis) mm 800
Distance between Spindle Nose to Table mm 150-950
Spindle Spindle Type / BT50/Φ190 (Short Nose)
Spindle Transimission Belt Type / Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) / Speed 6000r/min Ratio 4:1
WEMAS Gearhead(OP) / Speed 6000r/min Ratio 4.4:1
Speed of XYZ Rapid Speed m/min 15
Feeding Speed m/min 10
XYZ Axis Type X Ballscrew / 5010 6312
Y Ballscrew / 5010 5010
Z Ballscrew / 5010 5010
X Linear Guideway / Roller Guideway 55/6 Roller Guideway 55/8 Roller Guideway 55/10
Y Linear Guideway / Roller Guideway 55/4 Roller Guideway 55/4 Roller Guideway 55/4
Z Linear Guideway / Box Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type / XYZ Direct Drive X GearboxYZ Direct Drive
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 22.5 25 26.5 28



Item Unit GMCT1614A GMCT2014A GMCT2514A GMCT3014A
Table Table Width mm 1200 1200 1200 1200
Table Length mm 1700 2100 2600 3100
Table Load t 2.5 3.5 4.5 5.5
T Slot ( No - WxD) / 7-22×170
Travel Gantry Width mm 1500
Gantry Height mm 1030
Table Trave (X Axis) mm 1600 2000 2500 3000
Ram Travel (Y Axis) mm 1500
Spindle Travel (Z Axis) mm 800
Distance between Spindle Nose to Table Direct mm 150~950(BT40-Φ150/H138)
Blet (OP) / 70~870(BT50-Φ155/H174)
Spindle Spindle Type / BT40/Φ150(OP (BT50-p155)
Spindle Transimission Belt Type / BT40/Φ150 12000r/min
ZF/BF Gearbox + Blet (OP) / BT40/Φ150 12000r/min
WEMAS Gearhead(OP) / /
Speed of XYZ Rapid Speed m/min 15
Feeding Speed m/min 10
XYZ Axis Type X Ballscrew / 5010 6312
Y Ballscrew / 5010 5010
Z Ballscrew / 5010 5010
X Linear Guideway / Roller Guideway 55/6 Roller Guideway 55 Roller Guideway 55/10
Y Linear Guideway / Roller Guideway 55/4 Roller Guideway 55/4 Roller Guideway 55/4
Z Linear Guideway / Roller Guideway 45/6 (OP 55/6) Roller Guideway 45/6 (OP 55/6) Roller Guideway 45/6 (OP 55/6)
Motor Type XYZ Transmission Type / XYZ Direct Drive X GearboxYZ Direct Drive
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 18 19.5 21 22.5



Item Unit GMCT2016 GMCT2516 GMCT3016 GMCT3516
Table Table Width mm 1400 1400 1400 1400
Table Length mm 2100 2500 3000 3500
Table Load t 4 5 6 7
T Slot ( No - WxD) / 7-22×200
Travel Gantry Width mm 1700
Gantry Height mm 1080
Table Trave (X Axis) mm 2000 2500 3000 3500
Ram Travel (Y Axis) mm 1700 (Tool Changer Travel 1780)
Spindle Travel (Z Axis) mm 800
Distance between Spindle Nose to Table mm 200~1000
Spindle Spindle Type / BT50/Φ190 (Short Nose)
Spindle Transimission Belt Type / Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) / Speed 6000r/min Ratio 4:1
WEMAS Gearhead(OP) / Speed 6000r/min Ratio 4.4:1
Speed of XYZ Rapid Speed m/min 15
Feeding Speed m/min 10
XYZ Axis Type X Ballscrew / 5010 6312 8016
Y Ballscrew / 5010 5010 5010
Z Ballscrew / 5010 5010 5010
X Linear Guideway / Roller Guideway 55/6 Roller Guideway 55/8 Roller Guideway 55/10
Y Linear Guideway / Roller Guideway 55/4 Roller Guideway 55/4 Roller Guideway 55/4
Z Linear Guideway / Box Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type / XYZ Direct Drive X GearboxYZ Direct Drive
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 22 23.5 25 27



Item Unit GMCT2016A GMCT2516A GMCT3016A GMCT3516A
Table Table Width mm 1400 1400 1400 1400
Table Length mm 2100 2600 3100 3600
Table Load t 4 5 6 7
T Slot ( No - WxD) / 7-22×200
Travel Gantry Width mm 1700
Gantry Height mm 1080
Table Trave (X Axis) mm 2000 2500 3000 3500
Ram Travel (Y Axis) mm 1700 (Tool Changer Travel 1780)
Spindle Travel (Z Axis) mm 800
Distance between Spindle Nose to Table Direct mm 160~960(BT40-Φ150/H138)
Blet (OP) / 25~925(BT50-Φ155/H174)
Spindle Spindle Type / BT40/Φ150 (OP (BT50-p155)
Spindle Transimission Belt Type / BT40/Φ150 12000r/min
ZF/BF Gearbox + Blet (OP) / BT50/Φ155 8000r/min
WEMAS Gearhead(OP) / /
Speed of XYZ Rapid Speed m/min 15
Feeding Speed m/min 10
XYZ Axis Type X Ballscrew / 5010 6312 8016
Y Ballscrew / 5010 5010 5010
Z Ballscrew / 5010 5010 5010
X Linear Guideway / Roller Guideway 55/6
Y Linear Guideway / Roller Guideway 55/4
Z Linear Guideway / Roller Guideway 45/6(OP 55/6)
Motor Type XYZ Transmission Type / XYZ Direct Drive X GearboxYZ Direct Drive
Spindle Motor Type (N·m) See Torque Diagram
Size Weight of Machine t 22 23.5 25 27



Item Unit GMCT2018 GMCT2518 GMCT3018 GMCT3518
Table Table Width mm 1600 1600 1600 1600
Table Length mm 2200 2700 3200 3700
Table Load t 4.5 5.5 6.5 7.5
T Slot ( No - WxD) / 9-22×180
Travel Gantry Width mm 1900
Gantry Height mm 1080
Table Trave (X Axis) mm 2000 2500 3000 3500
Ram Travel (Y Axis) mm 1900
Spindle Travel (Z Axis) mm 800
Distance between Spindle Nose to Table mm 200~1000
Spindle Spindle Type / BT50/Φ190 (Short Nose)
Spindle Transimission Belt Type / Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) / Speed 6000r/min Ratio 4:1
WEMAS Gearhead(OP) / Speed 6000r/min Ratio 4.4:1
Speed of XYZ Rapid Speed m/min 15
Feeding Speed m/min 10
XYZ Axis Type X Ballscrew / 5010 6312 8016
Y Ballscrew / 5010 5010 5010
Z Ballscrew / 5010 5010 5010
X Linear Guideway / Roller Guideway 55/6 Roller Guideway 55/8 Roller Guideway 55/10
Y Linear Guideway / Roller Guideway 55/4 Roller Guideway 55/4 Roller Guideway 55/4
Z Linear Guideway / Box Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type / XYZ Direct Drive X Planetary Reduction Gear 4:1 YZ Direct Drive
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 23.5 25 26.5 28



Item Unit GMCT2018A GMCT2518A GMCT3018A GMCT3518A
Table Table Width mm 1600 1600 1600 1600
Table Length mm 2200 2700 3200 3700
Table Load t 4.5 5.5 6.5 7.5
T Slot ( No - WxD) / 9-22×180
Travel Gantry Width mm 1900
Gantry Height mm 1080
Table Trave (X Axis) mm 2000 2500 3000 3500
Ram Travel (Y Axis) mm 1900 (Tool Changer Travel 2000)
Spindle Travel (Z Axis) mm 800
Distance between Spindle Nose to Table Direct mm 160~960(BT40-Φ150/H138)
Blet (OP) / 125~870(BT50-Φ155/H174)
Spindle Spindle Type / BT40/Φ150(OP(BT50-p155)Belt)
Spindle Transimission Belt Type / BT40/Φ150 12000r/min
ZF/BF Gearbox + Blet (OP) / BT50/Φ155 8000r/min
WEMAS Gearhead(OP) / /
Speed of XYZ Rapid Speed m/min 15
Feeding Speed m/min 10
XYZ Axis Type X Ballscrew / 5010 6312 8016
Y Ballscrew / 5010 5010 5010
Z Ballscrew / 5010 5010 5010
X Linear Guideway / Roller Guideway 55/6
Y Linear Guideway / Roller Guideway 55/4
Z Linear Guideway / Roller Guideway 45/6(OP 55/6)
Motor Type XYZ Transmission Type / XYZ Direct Drive X Gearbox YZ Direct Drive
Spindle Motor Type (N·m) See Torque Diagram
Size Weight of Machine t 23.5 25 26.5 28



Item Unit GMCT2720 GMCT3220 GMCT3720 GMCT4220
Table Table Width mm 1800 1800 1800 1800
Table Length mm 2500 3000 3500 4000
Table Load t 5 6 8 9
T Slot ( No - WxD) / 9-22×190
Travel Gantry Width mm 2000
Gantry Height mm 1300
Table Trave (X Axis) mm 2700 3200 3700 4200
Ram Travel (Y Axis) mm 2000
Spindle Travel (Z Axis) mm 1000
Distance between Spindle Nose to Table mm Belt BT50-Φ155;205~1205mm;Belt BT50-Φ190;180~1180mm; Direct BT40-Φ150,240~1240(OP heighten 300mm)
Spindle Spindle Type / BT50/Φ155(OP BT40-150;BT50-190)
Spindle Transimission Belt Type / Speed 8000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) / Speed 6000r/min Ratio 4:1
WEMAS Gearhead(OP) / Speed 6000r/min Ratio 4.4:1
Speed of XYZ Rapid Speed m/min 15 12
Feeding Speed m/min 10 8
XYZ Axis Type X Ballscrew / X:6312 X:8020
Y Ballscrew / Y:5010 Y:5010
Z Ballscrew / Z:5010 Z:5010
X Linear Guideway / Roller Guideway 45/8 (OP 55) Roller Guideway 55/10（Double） Roller Guideway 55/14
Y Linear Guideway / Roller Guideway 45/4 (OP 55) Roller Guideway 45/4 (OP 55) Roller Guideway 45/4(OP 55)
Z Linear Guideway / Box Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type / XYZ Direct Drive 1:1 X Planetary Reduction Gear 4:1;Y Direct Drive 1:1;Z Direct Drive 1:1
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 22 24.5 27 29.5



Item Unit GMCT2720A GMCT3220A GMCT3720A GMCT4220A
Table Table Width mm 1800 1800 1800 1800
Table Length mm 2500 3000 3500 4000
Table Load t 5 6 8 9
T Slot ( No - WxD) / 9-22×190
Travel Gantry Width mm 2000
Gantry Height mm 1300
Table Trave (X Axis) mm 2700 3200 3700 4200
Ram Travel (Y Axis) mm 2000
Spindle Travel (Z Axis) mm 1000
Distance between Spindle Nose to Table mm Belt BT50-Φ155;205~1205mm;Belt BT50-Φ190;180~1180mm; Direct BT40-Φ150,240~1240(OP heighten 300mm)
Spindle Spindle Type / BT50/Φ155(OP BT40-150;BT50-190)
Spindle Transimission Belt Type / Speed 8000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) / Speed 6000r/min Ratio 4:1
WEMAS Gearhead(OP) / Speed 6000r/min Ratio 4.4:1
Speed of XYZ Rapid Speed m/min 15 12
Feeding Speed m/min 10 8
XYZ Axis Type X Ballscrew / X:6312 X:8020
Y Ballscrew / Y:5010 Y:5010
Z Ballscrew / Z:5010 Z:5010
X Linear Guideway / Roller Guideway 45/8 (OP 55) Roller Guideway 55/10（Double） Roller Guideway 55/14
Y Linear Guideway / Roller Guideway 45/4 (OP 55) Roller Guideway 45/4 (OP 55) Roller Guideway 45/4(OP 55)
Z Linear Guideway / Roller Guideway 45/12 (Four Guideway) Roller Guideway 45/12 (Four Guideway) Roller Guideway 45/12 (Four Guideway)
Motor Type XYZ Transmission Type / XYZ Direct Drive 1:1 X Planetary Reduction Gear 4:1;Y Direct Drive 1:1;Z Direct Drive 1:1
Spindle Motor Type / See Torque Diagram
Size Weight of Machine t 22 24.5 27 29.5



Item GMCT3025 GMCT4025 GMCT5025 GMCT6025 GMCT8025
Table Table Width 2300 2300 2300 2300 2300
Table Length 3000 4000 5000 6000 8000
Table Load 10 12 15 18 18
T Slot ( No - WxD) 11-28×200
Travel Gantry Width 2700
Gantry Height 1400 1390 1400
Table Trave (X Axis) 3000 4000 5000 6000 8000
Ram Travel (Y Axis) 2700 (Tool Changer Travel 3050)
Spindle Travel (Z Axis) 1000
Distance between Spindle Nose to Table 280~1280(OP heighten 180,250,300,430) 270~1270(OP heighten 180,250,300,430) 190~1190(OP heighten 180,250,300,430)
Spindle Spindle Type BT50/Φ200
Spindle Transimission Belt Type Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) Speed 6000r/min Ratio 4:1
WEMAS Gearhead(OP) Speed 6000r/min Ratio 4.4:1
Speed of XYZ Rapid Speed 10
Feeding Speed 6
XYZ Axis Type XYZ Ballscrew X:8020 Y:6316 Z:5010 X:10020 Y:6316 Z:5010
X Linear Guideway Roller Guideway 55/10（Double） Roller Guideway 55/10（Double） Roller Guideway 55/18（Double） Roller Guideway 55/26（Double）
Y Linear Guideway Roller Guideway 55/4 Roller Guideway 55/4 Roller Guideway 55/4 Roller Guideway 55/4
Z Linear Guideway Box Guideway Box Guideway Box Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear 4 1;Y Direct Drive 1:1;Z Direct Drive 1:1(OP:X Belt Drive 2.5:1;Y Planetary Reduction Gear 3:1) X Planetary Reduction Gear 4:1;Y Direct Drive 1:1;Z Direct Drive1:1(OP:Y Planetary Reduction Gear 3:1) X Planetary Reduction Gear 7.5:1;Y Direct Drive 1:1;Z Direct Drive 1:1(OP:Y Planetary Reduction Gear 3:1)
Spindle Motor Type See Torque Diagram
Size Weight of Machine 38 43 48 55 70



Item GMCT4032 GMCT5032 GMCT6032 GMCT8032 GMCT10032
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 8000 10000
Table Load 12 15 18 22 26
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 3200
Gantry Height 1700(OP heighten250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 3200 (Tool Changer Travel 3700)
Spindle Travel (Z Axis) 1250(OP1500）
Distance between Spindle Nose to Table T-Type Box Guideway Spindle 250~1500(OP heighten 250/500/750mm column)
WEMAS Box Spindle  (H140) 300~1550(OP heighten 250/500/750mm column)
Spindle Spindle Type BT50/Φ200 Long Nose End Spindle
Spindle Transimission Belt Type Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) Speed 6000r/min Ratio 4.4:1/1:1
WEMAS Gearhead(OP) /
Speed of XYZ Rapid Speed 10
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 100020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear 3:1+Belt2.5:1 X Planetary Reduction Gear 4:1+Belt2
Spindle Motor Type See Torque Diagram
Size Weight of Machine 52 57 62 72 82



Item GMCT4034 GMCT5034 GMCT6034 GMCT8034 GMCT10034
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 8000 10000
Table Load 12 15 18 22 26
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 3400
Gantry Height 1700(OP heighten250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 3400 (Tool Changer Travel 3900)
Spindle Travel (Z Axis) 1250(OP1500）
Distance between Spindle Nose to Table T-Type Box Guideway Spindle 250~1500(OP heighten 250/500/750mm column)
WEMAS Box Spindle  (H140) 300~1550(OP heighten 250/500/750mm column)
Spindle Spindle Type BT50/Φ200 Long Nose End Spindle
Spindle Transimission Belt Type Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) Speed 6000r/min Ratio 4.4:1/1:1
WEMAS Gearhead(OP) /
Speed of XYZ Rapid Speed 10 8
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 100020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear 3:1+Belt2.5:1
Y Planetary Reduction Gear 4:1;Z Planetary Reduction Gear 3:1
Spindle Motor Type See Torque Diagram
Size Weight of Machine 52 58 62 72 82



Item GMCT4038 GMCT5038 GMCT6038 GMCT8038 GMCT10038
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 4000 5000
Table Load 14 17 20 12 15
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 3800
Gantry Height 1700(OP heighten250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 3800 (Tool Changer Travel 4260)
Spindle Travel (Z Axis) 1250(OP1500）
Distance between Spindle Nose to Table T-Type Box Guideway Spindle 250~1500(OP heighten 250/500/750mm column)
WEMAS Box Spindle  (H140) 300~1550(OP heighten 250/500/750mm column)
Spindle Spindle Type BT50/Φ200 Long Nose End Spindle
Spindle Transimission Belt Type Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) Speed 6000r/min Ratio 4.4:1/1:1
WEMAS Gearhead(OP) /
Speed of XYZ Rapid Speed 10
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 100020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear 3:1+Belt2.5:1 X Planetary Reduction Gear4:1+ Belt 2:1
Y Planetary Reduction Gear 4:1;Z Planetary Reduction Gear 3:1
Spindle Motor Type See Torque Diagram
Size Weight of Machine 54 59 64 74 84



Item GMCT4042 GMCT5042 GMCT6042 GMCT8042 GMCT10042
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 8000 10000
Table Load 15 18 21 25 30
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 4200
Gantry Height 1700(OP heighten250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 4200 (Tool Changer Travel 4700)
Spindle Travel (Z Axis) 1250(OP1500）
Distance between Spindle Nose to Table T-Type Box Guideway Spindle 250~1500(OP heighten 250/500/750mm column)
WEMAS Box Spindle  (H140) 300~1550(OP heighten 250/500/750mm column)
Spindle Spindle Type BT50/Φ200 Long Nose End Spindle
Spindle Transimission Belt Type Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) Speed 6000r/min Ratio 4.4:1/1:1
WEMAS Gearhead(OP) /
Speed of XYZ Rapid Speed 10 8
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 100020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear 3:1+Belt2.5:1
Y Planetary Reduction Gear 4:1;Z Planetary Reduction Gear 3:1
Spindle Motor Type See Torque Diagram
Size Weight of Machine 56 61 66 76 86



Item GMCT4046 GMCT5046 GMCT6046 GMCT8046 GMCT10046
Table Table Width 3000 3000 3000 3000 3000
Table Length 4000 5000 6000 8000 10000
Table Load 15 18 21 25 30
T Slot ( No - WxD) 15-28×200
Travel Gantry Width 4600
Gantry Height 1700(OP heighten250、500、750mm column)
Table Trave (X Axis) 4000 5000 6000 8000 10000
Ram Travel (Y Axis) 4600 (Tool Changer Travel 5100)
Spindle Travel (Z Axis) 1250(OP1500）
Distance between Spindle Nose to Table T-Type Box Guideway Spindle 250~1500(OP heighten 250/500/750mm column)
WEMAS Box Spindle  (H140) 300~1550(OP heighten 250/500/750mm column)
Spindle Spindle Type BT50/Φ200 Long Nose End Spindle
Spindle Transimission Belt Type Speed 6000r/min Ratio 1:1
ZF/BF Gearbox + Blet (OP) Speed 6000r/min Ratio 4.4:1/1:1
WEMAS Gearhead(OP) /
Speed of XYZ Rapid Speed 10
Feeding Speed 6-10
XYZ Axis Type X Ballscrew 8020 100020 10020 (Nut Feeding)
Y Ballscrew 8020 8020 8020
Z Ballscrew 6316 6316 6316
X Linear Guideway Roller Guideway 3/55/15 Roller Guideway 3/55/18 Roller Guideway 3/55/24 Roller Guideway 3/55/33 Roller Guideway 3/55/39
Y Linear Guideway Roller Guideway55/8
Z Linear Guideway Box Guideway
Motor Type XYZ Transmission Type X Planetary Reduction Gear 5 X Planetary Reduction Gear7:1 X Planetary Reduction Gear 3:1+Belt2.5:1
Y Planetary Reduction Gear 4:1;Z Planetary Reduction Gear 3:1
Spindle Motor Type See Torque Diagram
Size Weight of Machine 59 64 69 79 89



Instant Inquiry
Please select the relevant specification parameters, and we will immediately send a quotation for the milling machining center you need.
Are you interested in applicable automation solutions?

Are you interested in our industry network application?
Recommended
Leave Your Message
×
Leave a message
Do you need help?
Send
熙珑（上海）机床有限公司
Follow Us
Contact SEALION

Our Location:

Room306, T2, No500, Xinlong Road,

Minhang District, Shanghai, China



Tel/Whatsapp:

+86-15901606828


E-Mail:

info@sealionmachine.com

About Us
About Sealion
Promises
Customer Experiences
R&D Center
Machines
Vertical Lathe
Slant Bed Lathe
Boring Machine
Machining Center
5-Axis
Application
Energy
Earth Moving
Die & Mold
General Machining
Engines
Down load
Vertical Lathe
Slant Bed Lathe
Boring Machine
Machining Center
5-Axis Machine
Service
Service Policy
Network
News
Company News
Exhibition & Events
Industry News
Contact Us
Contact Information
Privacy Policy
©2022 By Sealion Machine All Rights Reserved.
