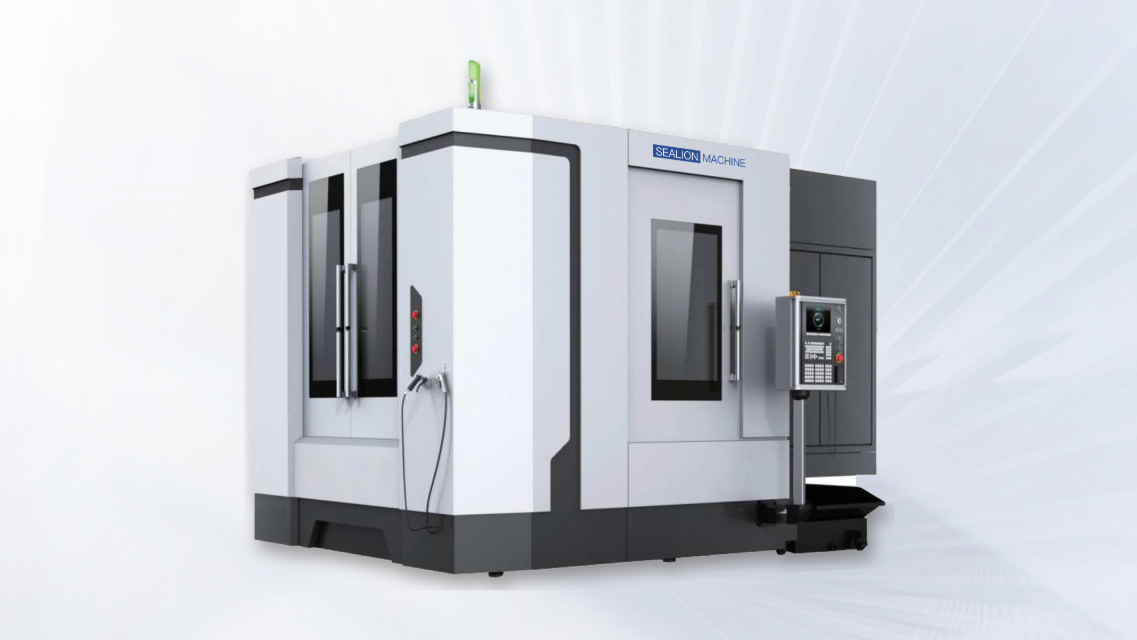

Horizontal Machining Center

CONSULT NOW

Standard: Fanuc 0i-MF(1)
4 Axis Simultaneous Control
Linear and circular interpolation
One-click initialization for quick configuration and updating of tool magazines
One-Click teaching tool change point, easy to operate
One-Click to set the big tool and fixed point to change the tool, to avoid operation error
Supports batch tool setting for any tool in the magazine
Convenient tool setter configuration interface for quick CNC configuration after installation

Send Inquiry

Description

Features Of Horizontal Machining Center

High Accuracy

- THK Precision Ballscrew

- Mono-block Casting for Motor Base and Column

- Thermo-symmetric spindle

High Efficiency

- Multiple Choice of Spindle

- Upto 120 Tools ATC

- Dock for Robot System

High Rigidity

- Lower Center of Gravity Bed

- High load capaciy of guideway

- Advanced manufacture technology

Specification

Parameters Of Horizontal Machining Center

Item			Unit	HMC50	HMC63	HMC80	HMC100
Table	Size		mm	500×500	630×630	800×800	1000×1000
	Load		kg	1000	2100	2600	3100
	Number		No	1/2
	Change Timea		s	11	14
	T-slot（No.-Size×Spece）			5-18×100 24-M16 spiral pattern		7-22×100 24-M16 spiral pattern
Travel	X/Y/Z Travel		mm	850/680/850	1100/900/980	1500/1100/1500	1500/1100/1350
	B Indexing		/	1°/0.001°
	Max Workpiece Turning Diameter		mm	Ф700	Ф1000	Ф1250
	Max Workpiece Height		mm	800	1000	1200
	Distance between Spindle Nose to Table Center	Max	mm	800	1130	1650
		Min	mm	150	150	150
	Distance between Spindle Centerto Table Face	Max	mm	750	1000	1150
		Min	mm	150	100	50
Spindle	aper Hole		/	BT40/BT50/HSK-A63/HSK-A100
	Max Speed		r/min	6000-20000
	Main Motor Power（S1/S3/36 15%）		kW	See Power-Torque Chart
	Output Torque（Continuous/S2 30min）		N·m	See Power-Torque Chart
Feeding	Feeding Speed（X/Y/Z）		mm/min	1-10000
	Rapid Speed（X/Y/Z）		m/min	36		24
Accuracy	Position Accuracy		mm	+/- 0.006
	Repeatability Position Accuracy		mm	±0.003
Size	Machine Size（Length×Width）		mm	6611×4150	7000×4300	8000×4500
	Machine Height		mm	3190	3500	3800
	Machine Weight		t	13	15	20	21
