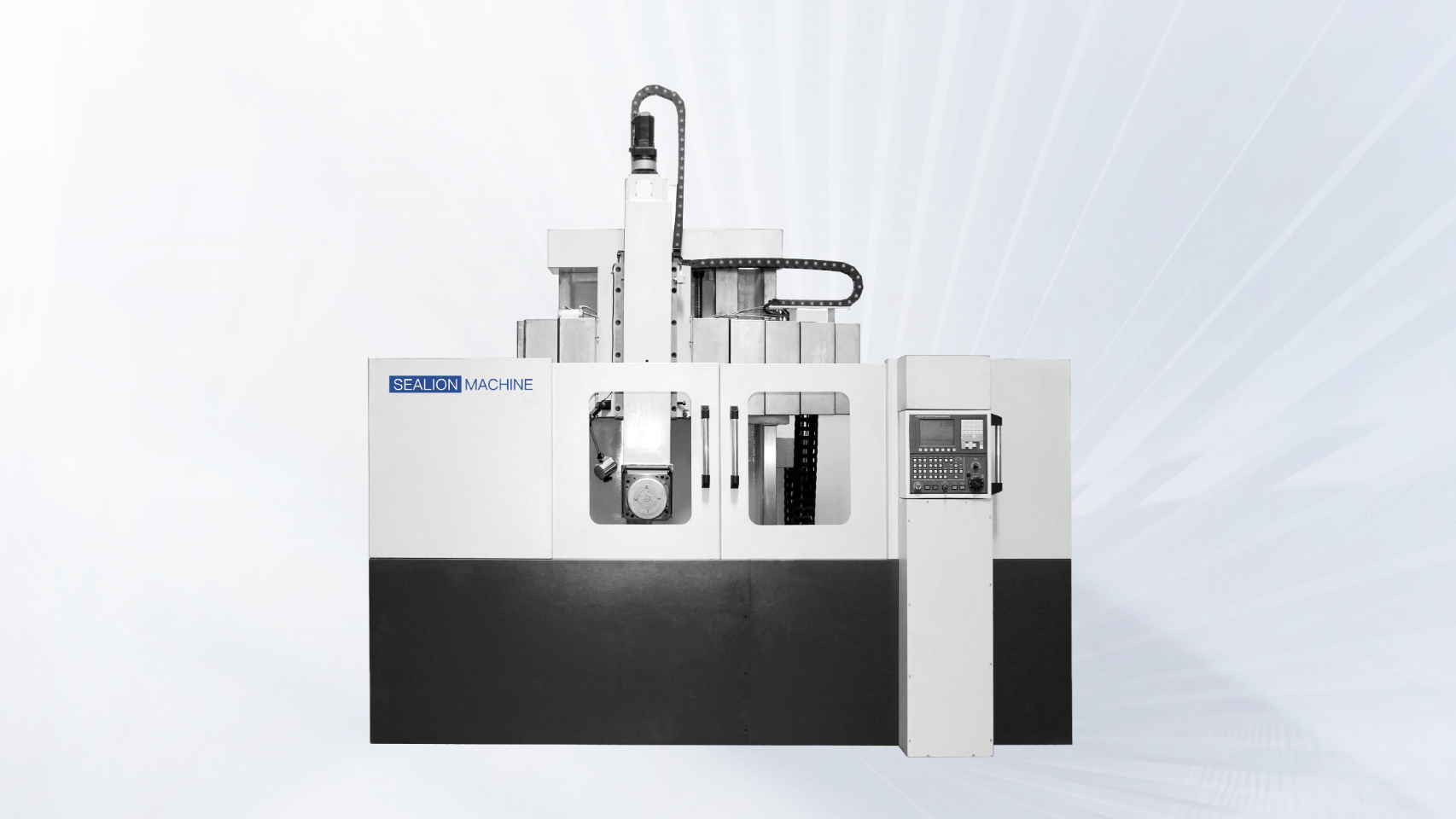

CK51D SERIES CNC VERTICAL LATHE

Description

Features Of CK51D SERIES CNC VERTICAL LATHE

This series are double lift series and upgraded version of the CK51D series,absorbing all the advantages of the CK51D series.

The crossbeam adopts dual screw driven lifting motion,and the bed guide rail is arranged in a thermally symmetrical structure.

The cross beam maintains high parallelism accuracy the to worktable.

Effectively improved the consistency of various accuracies of the worktable with the vertical tool holder at diferent positions on the cross beam.

Effectively improved the consistency of various accuracies of the worktable with the vertical tool holder at different positions on the cross beam.

The positioning and repeatability accuracy of the feed axis are improved.

Specification

Parameters Of CK51D SERIES CNC VERTICAL LATHE

Item	Unit	CK5112D	CK5116D	CK5120D	CK5123D	CK5126D
Max Processing Diameter	mm	1250	1600	2000	2300	2600
Max Turning Diameter	mm	1270	1620	2020	2320	2620
Table Diameter	mm	1000	1400	1800	2000	2250
Max Processing Height	mm	1000	1000	1250	1350	1400
Max Processing Height Limit (OP)	mm	1250	1600	1800	1800	1650
Table Speed	r/min	6.3~200	5~160	3.2~100	3.2~100	2~63
Table Speed Steps	/	4-Speed Stepless
TTable Speed Steps(OP)	/	2-Speed Stepless
Table Load	t	3.2	5	8	8	10
Table Load (OP)	t	5	8	10	10	16
Feeding Speed of Tool Post	mm/min	0.1~1000
Rapid Speed of Tool Post	mm/min	2000
Horizontal Travel of Tool Post(X)	mm	-50~750	-50~1000	-50~1150	-50~1350	-50~1450
Cross Beam Travel	mm	Max Processing Height -350
Main Motor Power	kW	22	30	37	37	45
Main Motor Torque	KNm	10.5	17.9	35.3	35.3	68.2
Beam Lifting Speed	mm/min	660
Max Cutting Force of Vertical Tool Holder	Kn	20	25
Machine Dimension (LxW)	mm	2930×2115	3200×2600	3570×2985	3950×3300	4350×3665
Machine Dimension with Cover (LxW)	mm	4000×3714	4700×3805	5200×4325	5700×4220	6500×4745
Min Height	mm	2900	3100	3500	3500	3900
Machine Weight	t	8	12.6	17	18	24
Accuracy Level	/	IT7
Positioning Accuracy	mm	0.03/1000
Repeatability Accuracy	mm	0.015/1000
Reverse Deviation	mm	0.01/1000
